DYNAMIC RECEIVER 1DR1007

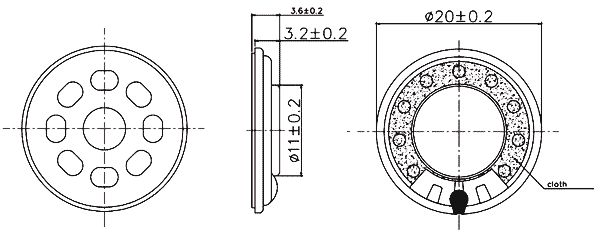

Unit: mm , Tolerance +/- 0.5mm

Electrical Specifications

Parameter
1DR1007
Diameter (mm)
20
Height (mm)
3.6
Sensitivity at 1kHz [IEC 318] +/- 3dB
112
Frequency Range (fo-Hz)
300 - 5000
Impedance (Ω)
16
Input Power [Max.] (mW)
30
Operating Temperature (°C)
-20 - +60
Frame Material
Metal
Weight (g)
0.8
Measured at (mV)
60
