DYNAMIC RECEIVER 1DR1019

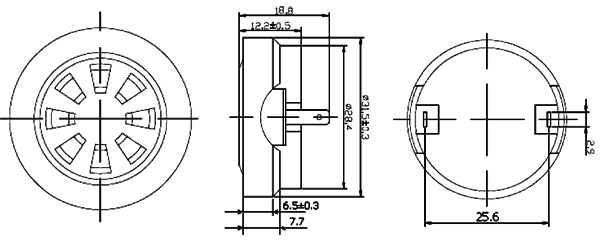

Unit: mm , Tolerance +/- 0.5mm

Electrical Specifications

Parameter
1DR1019
Sensitivity at 1kHz [IEC 318] +/- 3dB
98
Frequency Range (fo-Hz)
200 - 4000
Impedance (Ω)
300
Input Power [Max.] (mW)
10
Operating Temperature (°C)
-20 - +60
Frame Material
Metal
Weight (g)
0.8
Measured at (mV)
60
