LOUD SPEAKER 1LS1001

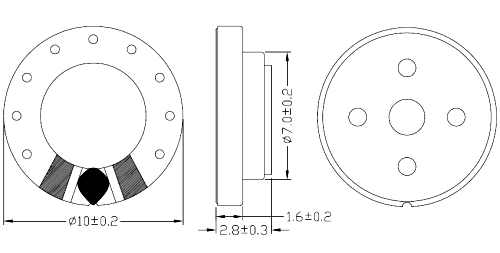

Unit: mm , Tolerance +/- 0.5mm

Value applying at 0.1m 0.1W 0,6k, 0,8k, 1k, 1,5kHz.

Electrical Specifications

Parameter
1LS1001
Resonant Frequency fo (Hz)
1400
Frequency Range (fo-Hz)
5000
Rated Power (W)
0.5
Max Power (W)
1
Sound Pressure Level (dB/10cm)
96 / 0.1W
Impedance (Ω)
8
Operating Temperature (°C)
-20 - +60
Frame Material
Metal
