LOUD SPEAKER 1LS1010

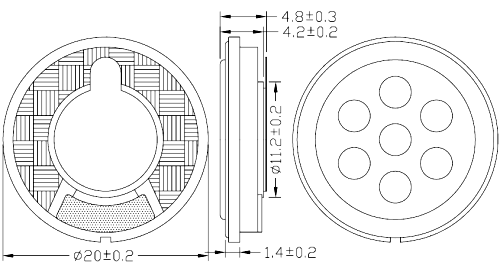

Unit: mm , Tolerance +/- 0.5mm

Value applying at 0.1m 1W 0,6k, 0,8k, 1k, 1,5kHz.

Electrical Specifications

Parameter
1LS1010
Resonant Frequency fo (Hz)
650
Frequency Range (fo-Hz)
20000
Rated Power (W)
1
Max Power (W)
1.5
Sound Pressure Level (dB/10cm)
95 / 1W
Impedance (Ω)
8
Operating Temperature (°C)
-20 - +60
Frame Material
Plastic
