LOUD SPEAKER 1LS1017

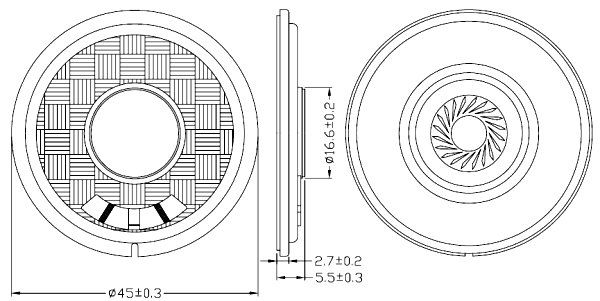

Unit: mm , Tolerance +/- 0.5mm

Value applying at 0.1m 0.25W 0,6k, 0,8k, 1k, 1,5kHz.

Electrical Specifications

Parameter
1LS1017
Resonant Frequency fo (Hz)
450
Frequency Range (fo-Hz)
4500
Rated Power (W)
0.25
Max Power (W)
0.5
Sound Pressure Level (dB/10cm)
93 / 0.25W
Impedance (Ω)
100
Operating Temperature (°C)
-20 - +60
Frame Material
Metal
