LOUD SPEAKER 1LS1020

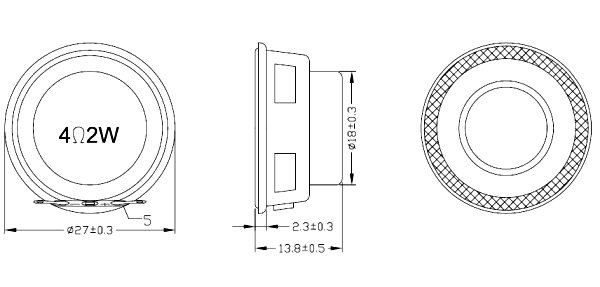

Unit: mm , Tolerance +/- 0.5mm

Value applying at 0.1m 1W 0.6k, 0.8k, 1k, 1.5kHz.

Electrical Specifications

Parameter
1LS1020
Resonant Frequency fo (Hz)
500
Frequency Range (fo-Hz)
20000
Rated Power (W)
2
Max Power (W)
3
Sound Pressure Level (dB/10cm)
99 / 1W
Impedance (Ω)
4
Operating Temperature (°C)
-20 - +60
Frame Material
Metal
