FEEDBACK PIEZO TRANSDUCER 1PF1009

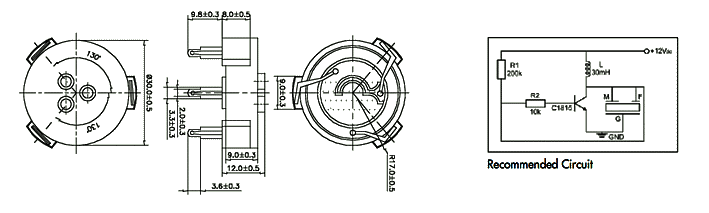

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage with recommended circuit
Electrical Specifications
Parameter
1PF1009
Diameter (mm)
30
Height (mm)
12
Termination
PIN
Min Sound Pressure Level at 30cm (dBA)
88
Rated Voltage (Vdc)
12
Operating Voltage (Vdc)
1.5-24
Resonance Frequency (Hz)
3500 ± 500
Max Operating Current (mA)
12
Operating Temperature (°C)
-20 - +70
Case Material
PBT
Weight (g)
5
