FEEDBACK PIEZO TRANSDUCER 1PF1010

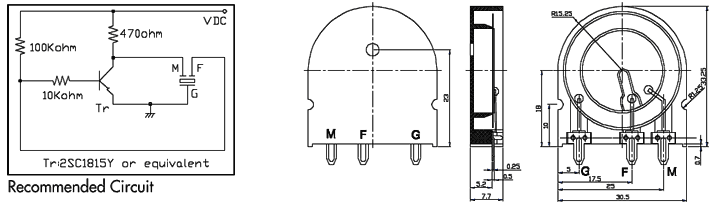

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage with recommended circuit
Electrical Specifications
Parameter
1PF1010
Diameter (mm)
33.3 x 30.5
Height (mm)
7.7
Termination
PIN
Min Sound Pressure Level at 10cm (dBA)
85
Rated Voltage (Vdc)
12
Operating Voltage (Vdc)
3-25
Resonance Frequency (Hz)
2500 ± 500
Max Operating Current (mA)
20
Operating Temperature (°C)
-40 - +85
Case Material
Noryl
Weight (g)
3.3
