FEEDBACK PIEZO TRANSDUCER 1PF1012

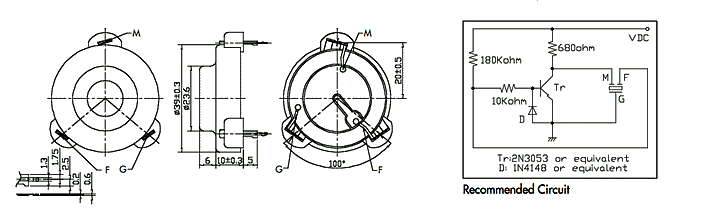

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage with recommended circuit
Electrical Specifications
Parameter
1PF1012
Diameter (mm)
39
Height (mm)
16
Termination
PIN
Min Sound Pressure Level at 10cm (dBA)
100
Rated Voltage (Vdc)
12
Operating Voltage (Vdc)
6-20
Resonance Frequency (Hz)
3200 ± 500
Max Operating Current (mA)
15
Operating Temperature (°C)
-20 - +70
Case Material
Noryl
Weight (g)
9.1
