PIEZO BUZZER 1PB1025

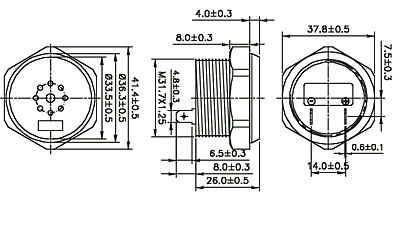

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage
Electrical Specifications
Parameter
1PB1025
Min Sound Pressure Level at 1m (dBA)
85
Rated Voltage (Vdc)
12
Operating Voltage (Vdc)
5-28
Resonance Frequency (Hz)
3000 ± 500
Max Operating Current (mA)
18
Tone
Continuous
Operating Temperature (°C)
-20 - +60
Case Material
ABS
Weight (g)
30
