PIEZO BUZZER 1PB1036

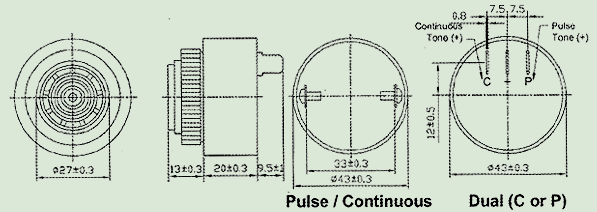

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage
Electrical Specifications
Parameter
1PB1036
Min Sound Pressure Level at 30cm (dBA)
95
Rated Voltage (Vdc)
24
Operating Voltage (Vdc)
7-30
Resonance Frequency (Hz)
2900 ± 500
Max Operating Current (mA)
12
Tone
Continuous
Operating Temperature (°C)
-40 - +85
Case Material
Noryl
Weight (g)
39
