PIEZO BUZZER 1PB1037

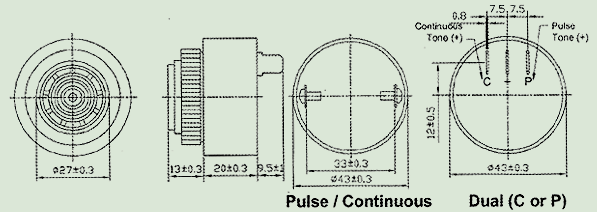

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage
Electrical Specifications
Parameter
1PB1037
Min Sound Pressure Level at 30cm (dBA)
100
Rated Voltage (Vdc)
12
Operating Voltage (Vdc)
3-28
Resonance Frequency (Hz)
2900 ± 500
Max Operating Current (mA)
10
Tone
Dual (C or P)
Operating Temperature (°C)
-40 - +85
Case Material
Noryl
Weight (g)
39
