PIEZO BUZZER 1PB1041

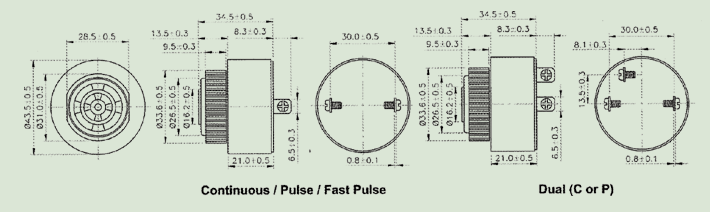

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage
Electrical Specifications
Parameter
1PB1041
Min Sound Pressure Level at 30cm (dBA)
95
Rated Voltage (Vdc)
12
Operating Voltage (Vdc)
3-18
Resonance Frequency (Hz)
2900 ± 500
Max Operating Current (mA)
20
Tone
Dual (C or P)
Operating Temperature (°C)
-20 - +60
Case Material
ABS
Weight (g)
35
