PIEZO BUZZER 1PB1042

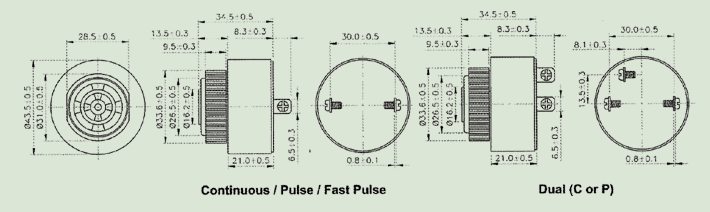

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage
Electrical Specifications
Parameter
1PB1042
Min Sound Pressure Level at 30cm (dBA)
100
Rated Voltage (Vdc)
24
Operating Voltage (Vdc)
3-28
Resonance Frequency (Hz)
2900 ± 500
Max Operating Current (mA)
22
Tone
Continuous
Operating Temperature (°C)
-20 - +60
Case Material
ABS
Weight (g)
35
