PIEZO BUZZER 1PB1057

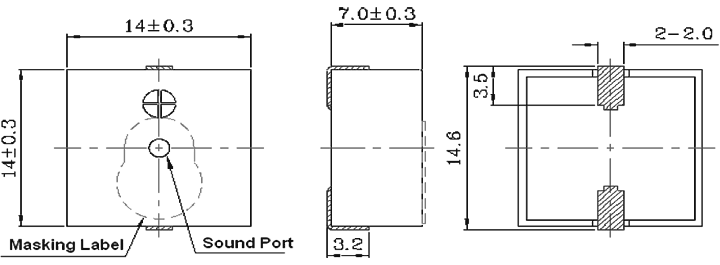

Unit: mm , Tolerance +/- 0.5mm
Value applying rated voltage
Electrical Specifications
Parameter
1PB1057
Min Sound Pressure Level at 10cm (dBA)
83
Rated Voltage (Vdc)
12
Operating Voltage (Vdc)
3-16
Resonance Frequency (Hz)
4000 ± 500
Max Operating Current (mA)
8
Tone
Continuous
Operating Temperature (°C)
-20 - +70
Case Material
LCP
Weight (g)
2
